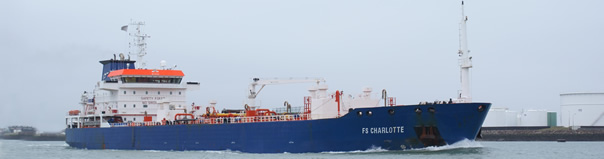

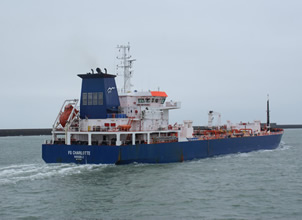

FS CHARLOTTE
OMG-004

The sophisticated ship is a single decked, single screw unit with triple bottom and triple skin. The ship is designed for unrestricted navigation and service. No structural element faces the uncoated cargo tanks designed to carry separately molten sulphur and bitumen. The hull form is designed for minimum resistance, overall design provides an environment-friendly, cost-effective, reliable and flexible unit. In the ship that is equipped with a cargo pump room installation, cargo tanks are totally independent from the hull structure and they are carried by special supports and keys. Due to high temperature of the goods loaded, the structure is designed in such a way that the cargo tanks can expand in every direction.


Services

CONTRACTING BUSINESS

  • Piping systems production & Engineering
  • Piping systems production & Assembly

Ship Information

OWNER

SHIPYARD

HULL NO

DESIGNER

CLASSIFICATION

CLASS ID

CLASS NOTATION



IMO NO

Eitzen Grup / Norveç

Yardımcı Gemi İnşa A.Ş. / Türkiye

40

Delta Marine

Bureau Veritas

04897A

BV I HULL MACH, OIL TANKER FLASH POINT > 60 C, ASPHALT 250 C TANKER, MOLTEN SULPHUR TANKER, UNRESTRICTED NAVIGATION, ESP AUT-MS, AUT-PORT, MANOVR, AVM-APS, SYS-NEQ, CLEAN SEA, CLEAN AIR, MON-SHAFT, VCS, CARGO CONTROL, COMF-NOISE, COMF-VIB, INWATERSURVEY, VERISTAR HULL

9327504


Main Dimensions

Length (OA)

Length (BP)

Breadth (Moulded)

Depth (Moulded)

Draught (Design)

Draught(Scantling)

129,00 m

123,90 m

22,00 m

12,50 m

7,80 m

8,20 m

Tonnage & Capacities

DWT

Cargo Capacity

Crew

12497 ton

11092 m³

17

Speed & Propulsion Sys.

Des. Speed

Main Engine

Propulsion System

14 knots, 85% MCR

MaK 6M43, 1 x 5400 kW, 500 rpm

ZF MARINE, 1 x Controllable Pitch Propeller, 4 blades, 4400 mm, 150 rpm, NiAlBr
